Temperature and humidity accelerated life testing (TAHAT) is a method used to evaluate the reliability of electronic components under various environmental conditions. The test involves subjecting the components to extreme temperature and humidity levels to accelerate the failure process and determine their lifespan.
What is Temperature and Humidity Accelerated Life Testing?
TAHAT is a form of accelerated life testing (ALT) that combines high temperatures with high humidity levels to simulate the effects of environmental stress on electronic components. The test is designed to mimic real-world conditions, such as those found in tropical or desert environments, where temperature and humidity can be extreme.
The primary goal of TAHAT is to predict the lifespan of a component under normal operating conditions based on its performance under accelerated conditions. By subjecting the components to extreme temperatures and humidity levels, engineers can accelerate the failure process and determine how long it will take for the component to fail.
Advantages of Temperature and Humidity Accelerated Life Testing
TAHAT offers several advantages over traditional testing methods:
Accelerated testing: TAHAT allows engineers to simulate years of real-world use in a matter of weeks or months, reducing the time and cost associated with testing.
Improved accuracy: By subjecting components to extreme conditions, engineers can better understand how they will perform under normal operating conditions.
Early detection of failures: TAHAT can help identify potential failure modes early on, allowing for design modifications and improvements.
How is Temperature and Humidity Accelerated Life Testing Conducted?
The TAHAT process typically involves the following steps:
1.
Component selection: Components to be tested are selected based on their criticality and failure mode.
2.

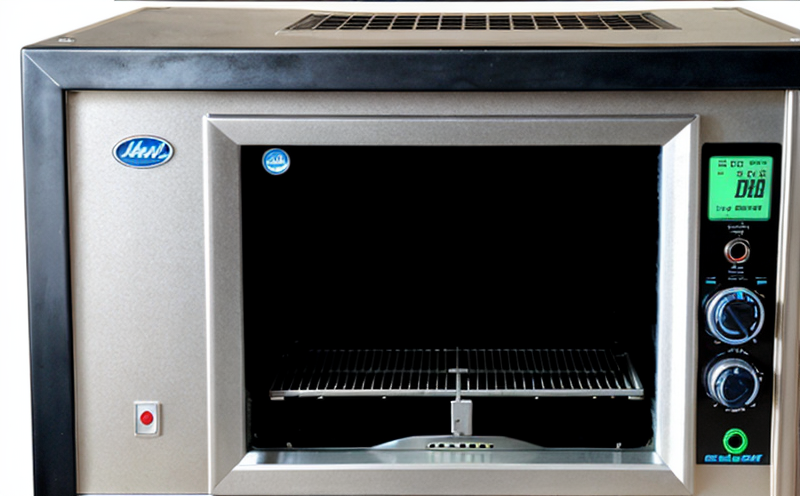

Test chamber setup: A test chamber is set up to simulate the desired temperature and humidity conditions.
3.
Monitoring and control: Temperature, humidity, and other environmental parameters are monitored and controlled in real-time.
4.
Testing: Components are subjected to the accelerated conditions, and their performance is monitored and recorded.
5.
Failure analysis: Failed components are analyzed to determine the cause of failure.
Key Factors Affecting Temperature and Humidity Accelerated Life Testing
Several key factors can affect the outcome of TAHAT:
Temperature: The temperature at which testing takes place can significantly impact the results. Typical temperature ranges for TAHAT include:
25C to 40C (77F to 104F) for ambient temperatures
85C to 125C (185F to 257F) for high-temperature conditions
Humidity: Humidity levels can also impact the results. Typical humidity ranges for TAHAT include:
30 to 80 relative humidity (RH) for moderate humidity conditions
90 to 100 RH for high-humidity conditions
Common Temperature and Humidity Accelerated Life Testing Methods
Several common methods are used in TAHAT:
Constant temperature and humidity: Components are subjected to a constant temperature and humidity level.
Alternating temperature and humidity: Components are cycled between different temperature and humidity levels.
Detailed Information on Temperature and Humidity Profiles for Specific Applications
Temperature and humidity profiles can vary depending on the application. Here are some common profiles:
Tropical environment: High temperatures (up to 40C) and high humidity (up to 90 RH)
Desert environment: Extreme temperatures (up to 60C) and low humidity (down to 10 RH)
Detailed Information on Temperature and Humidity Testing for Electronic Components
Electronic components can be subject to various temperature and humidity profiles, depending on their application:
Integrated circuits: Typically subjected to high-temperature conditions (up to 125C)
Passive components: Subjected to moderate temperature conditions (up to 85C)
QA Section
1. Q: What is the purpose of Temperature and Humidity Accelerated Life Testing?
A: The primary goal of TAHAT is to predict the lifespan of a component under normal operating conditions based on its performance under accelerated conditions.
2. Q: How does TAHAT compare to traditional testing methods?
A: TAHAT allows for accelerated testing, improved accuracy, and early detection of failures, making it a more efficient and effective method than traditional testing.
3. Q: What are the key factors affecting the outcome of TAHAT?
A: Temperature and humidity levels can significantly impact the results, as well as other environmental parameters such as air flow and vibration.
4. Q: What types of components are typically tested using TAHAT?
A: Electronic components, including integrated circuits, passive components, and others, are commonly tested using TAHAT.
5. Q: How long does a typical TAHAT test take?
A: The duration of a TAHAT test can vary depending on the application, but it is typically weeks or months, rather than years.
6. Q: Can TAHAT be used to simulate real-world conditions?
A: Yes, TAHAT can be designed to simulate specific environmental conditions, such as those found in tropical or desert environments.
7. Q: What are some common temperature and humidity profiles for TAHAT?
A: Profiles include constant temperature and humidity levels, alternating temperature and humidity, and others.
8. Q: Can TAHAT help identify potential failure modes?
A: Yes, by subjecting components to extreme conditions, engineers can better understand how they will perform under normal operating conditions.
Conclusion
Temperature and humidity accelerated life testing is a powerful tool for evaluating the reliability of electronic components under various environmental conditions. By subjecting components to extreme temperature and humidity levels, engineers can accelerate the failure process and determine their lifespan. With its ability to simulate real-world conditions, TAHAT offers several advantages over traditional testing methods, including improved accuracy and early detection of failures.
